CN Chippewa River Bridge (Murry)

Pratt Through Truss Bridge over Chippewa River
Murry, Rusk County, Wisconsin

Click the Photo Above to See All Photos of This Bridge!
Name CN Chippewa River Bridge (Murry)
Built By Lake Superior & Southeastern Railroad
Contractor Wisconsin Bridge & Iron Company of Milwaukee
Currently Owned By Canadian National Railway
Length 470 Feet Total, 150 Foot Main Spans
Width 1 Track
Height Above Ground 40 Feet (Estimated)
Superstructure Type Pratt Through Truss and I-Beam
Substructure Type Concrete
Date Built 1907, Rehabilitated 2006
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
CN Bridge Number 363.06
Significance Local Significance
A brief history of the Canadian National Superior Subdivision:


08/20/21


This massive through truss bridge crosses the Chippewa River, near the small town of Murry in Rusk County.
The bridge contains a pair of 5 panel, riveted Pratt Through Trusses. These trusses have been heavily reconstructed, although they still bear some of the original components.
In addition to the trusses being heavily rebuilt in 2006, the approaches have also been reconstructed since the line was first built. The current approaches are I-Beam spans.
The entire bridge rests on concrete substructures.

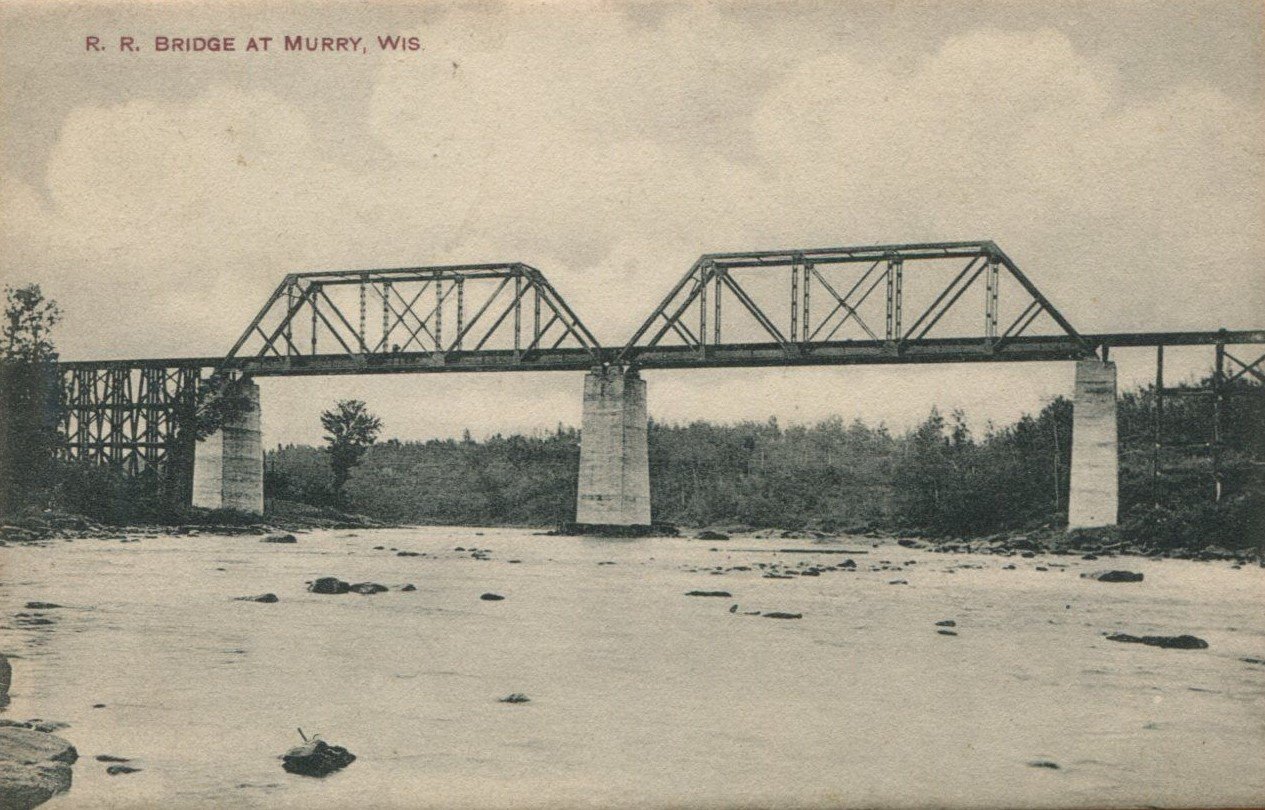

Historic Photo
Historic photo of the bridge

The author has ranked the bridge as being locally significant, not due to the age of the structure, but the heavy alterations detract from it.
The photo above is an overview.

Chippewa River Railroad Bridges
Upstream Headwaters at Lake Chippewa
Downstream Bruce Rail Bridge

Citations

Source Type

Source

Build Date Wisconsin Bridge & Iron Company plaque
Contractor Wisconsin Bridge & Iron Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
